Newest arriving 4040Max CNC Router Machine, updated from 4040Pro, available with 20W or 40W laser, trimmer router

[Features]

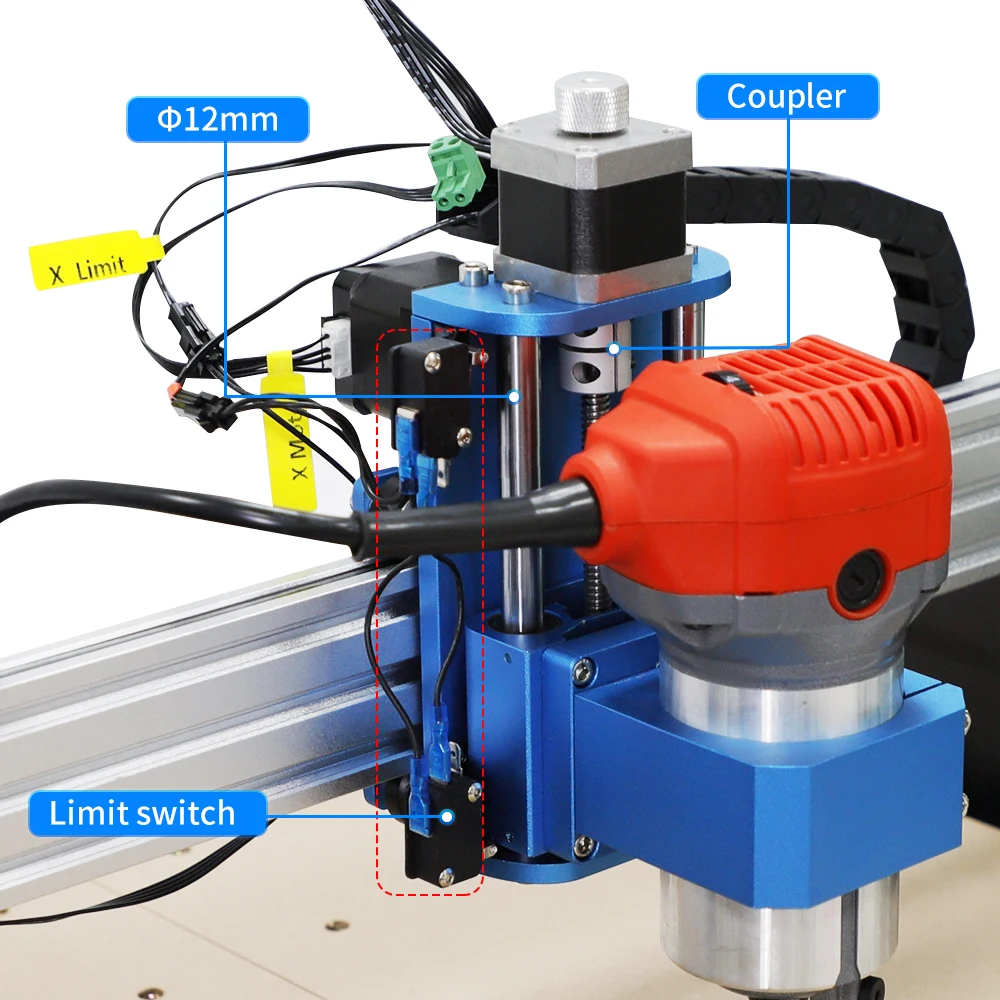

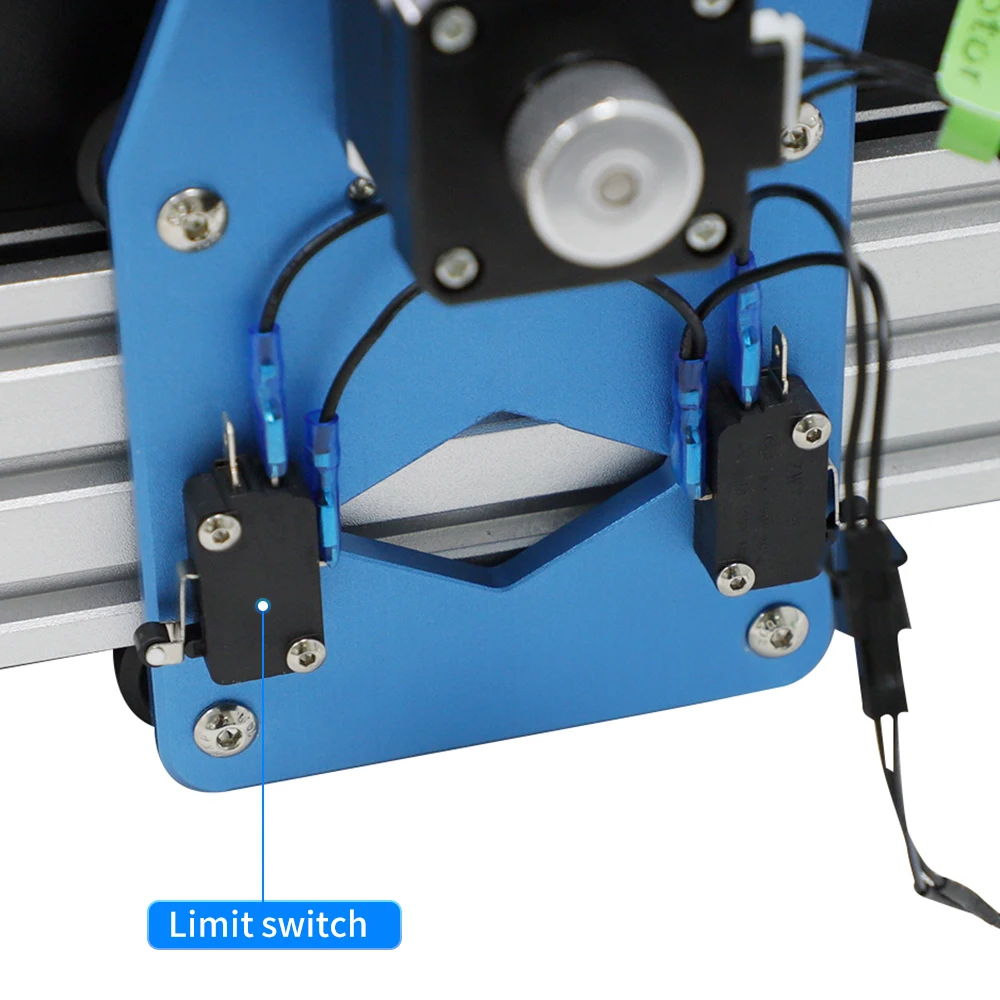

1. [keeps all the features of 4004pro] 4040Max keeps Limit switchs on X&Y&Z Axis to keep safetly from wrong operation, keeps E-stop to stop the machine from emergency. keeps home on the controller.

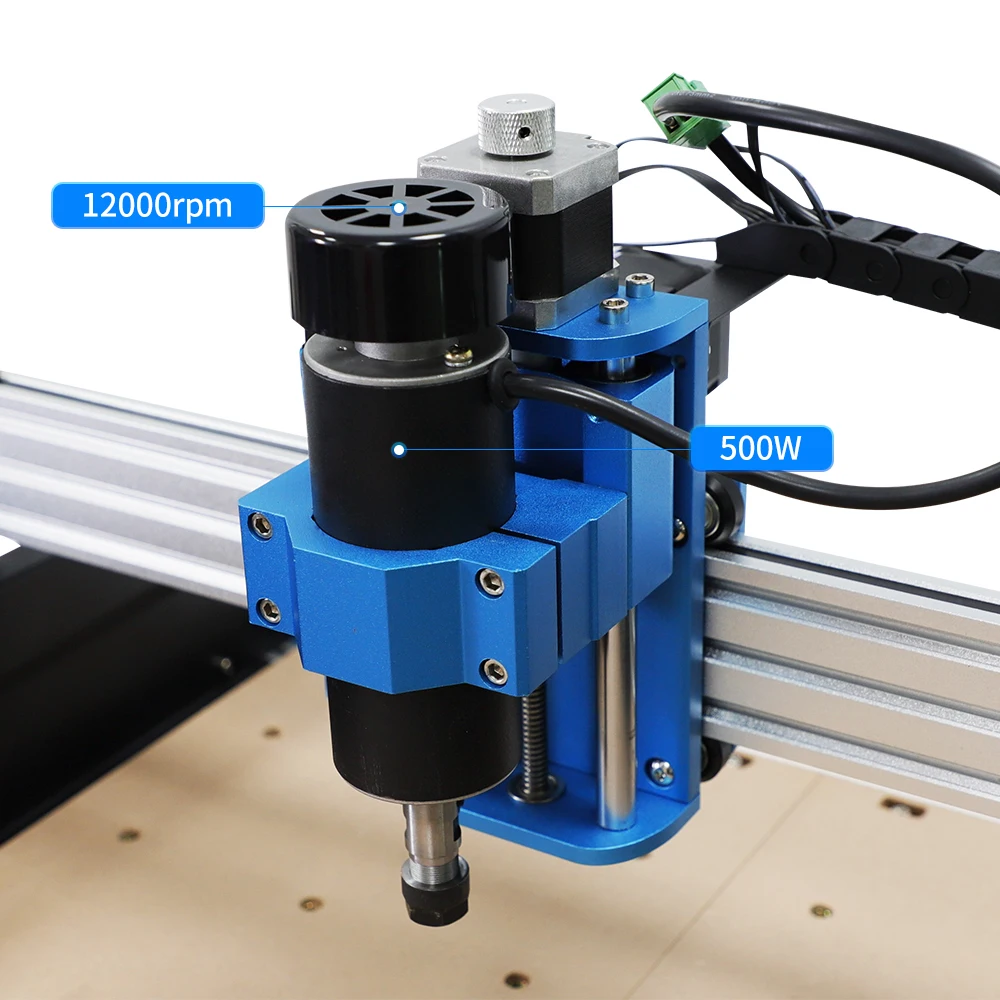

2. [New controller] We mixed the 4040pro controller and the board into a new controller, there will be no adaptor for 500w spindle and laser, now we can conncect the 500 spindle and 40W laser to the new controller directly and easily.

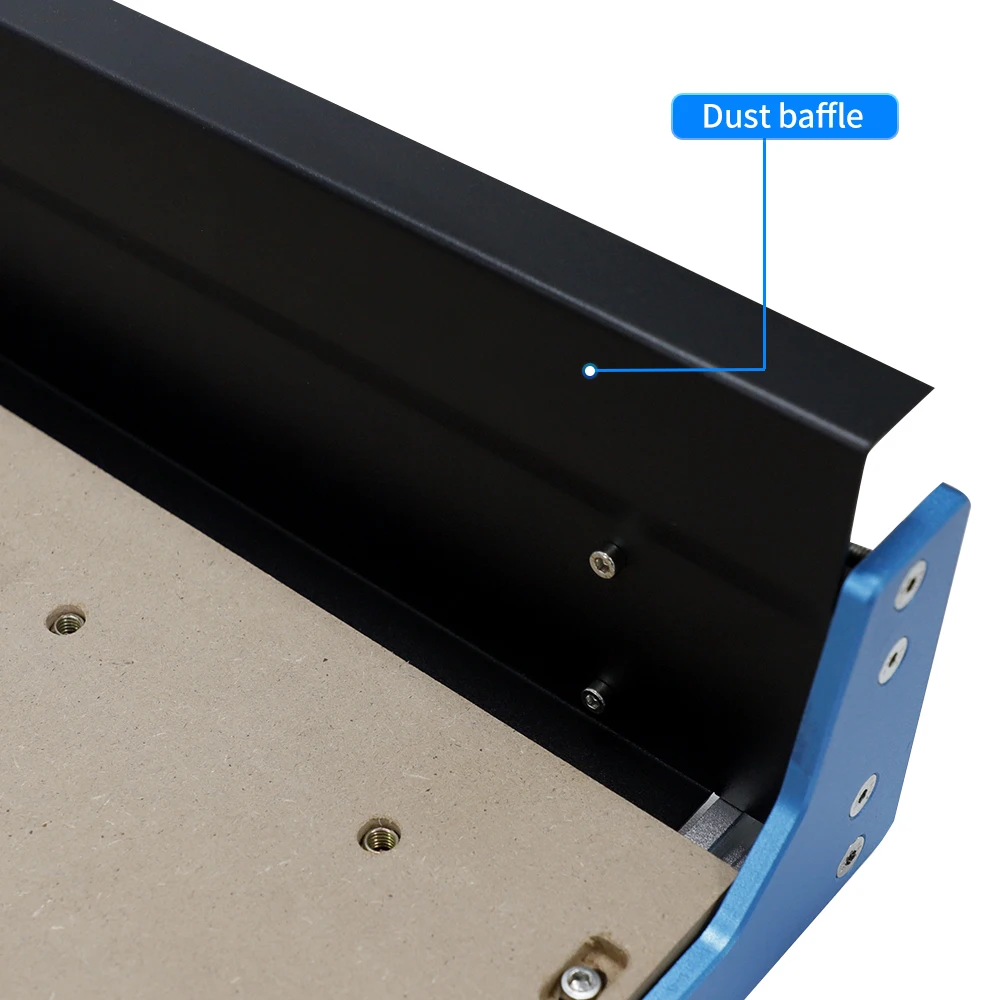

3. [Dust baffle] We add dust baffle in 4040Max, it prevent dust from entering the profile gap inside the Y-axis effectively, we can clean the machine easier.

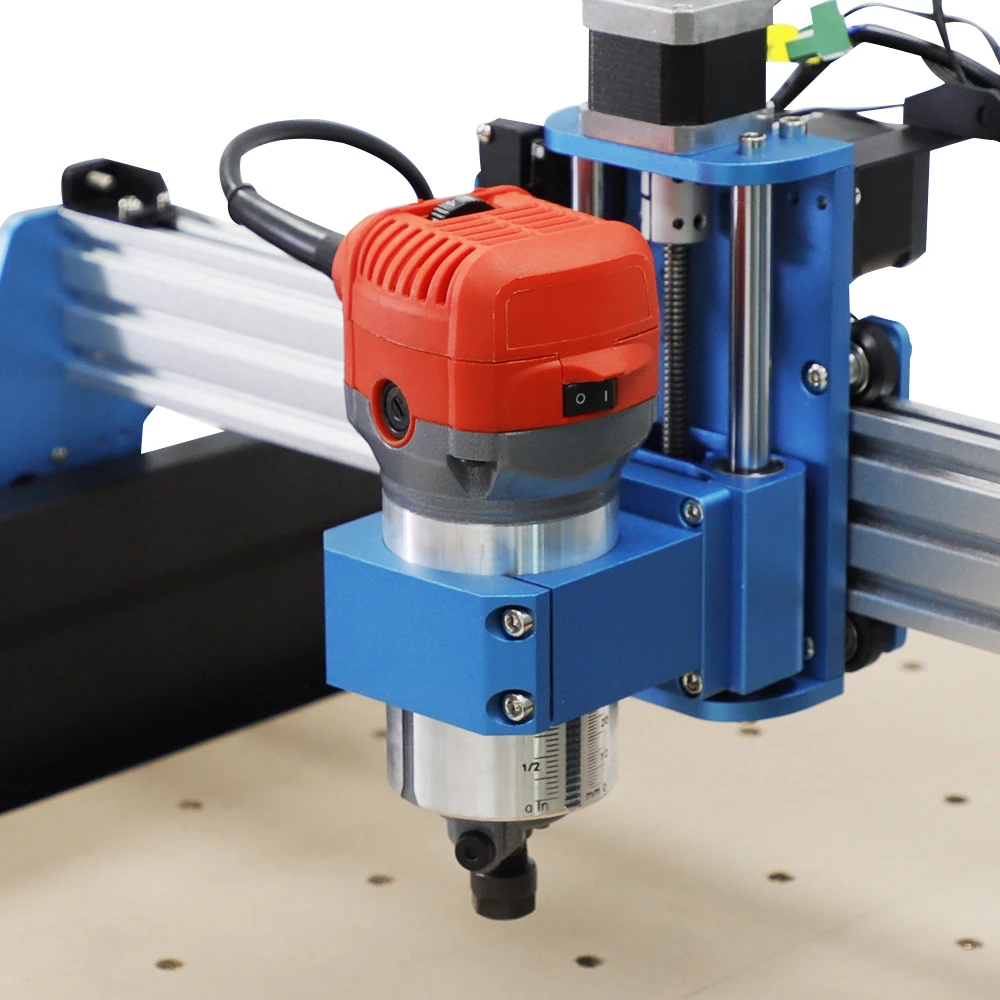

4. [Trimmer router available] We provide trimmer router for 4040Max. it is more powerful than 500W spindle. and takes more practicality to our genius design.

​ ​

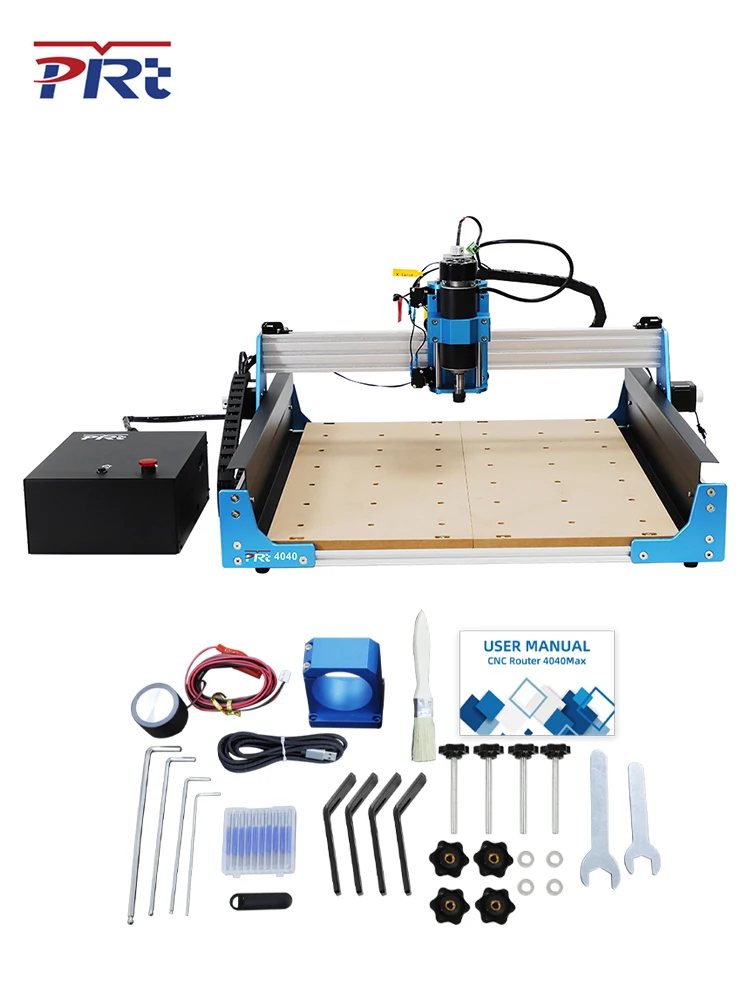

Packing list: 4040Max (without trimmer router or laser)

1 x 4040Max CNC Router Machine ( (Main part pre-installed))

1 x controller

1x 52mm Spindle holder ​ ​1x 65mm Spindle holder

1 x Zprobe

1x Power Supply cable

4 x clamps

1 x brush

1x U Disk

1 x USB Cable

1x User Manual

10 x router v-bit

Packs of screws

A set of wrenches for installation

[Excellent Packaging & pre-assembled parts]

The packaging size is 710mm*410mm*350mm. weight is 20KG.

The Pre-assembled parted are embedded in the foam to fully protect the machine, and it is easy to assembled again

​

FAQ(Frequently Answer and Question)

1. Warranty:

    PRTCNC factory provide 1 year for the machine, 3 monthes for the parts(Accessories).

    During the warranty, parts are free, customer pay the shipping cost. ​

    After the warranty, both parts and shipping cost are paid by customer.

2. Delivery time

    Machine will be ready in 3days in usually.

    Ship by sea to USA & Canada, about 25-30 days; if by internatnional Express, 7-10days.

    To Australia by Air, it is about 20-25days

    To Eu coutries, about 20-30days by air

    For other country, pls contact us for the details.

3. Software

   We provide free GRBL laser for laser working, free Candle for spindle working.

  If you want to use paid software, there are some advise, Carveco maker, Easel. Lightburn(for laser).

  It also supports openbuilds

4. Laser & Spindle

  This machine supports both laser and spindle working, but they cant work at same time.

  When you change laser to be spindle, it is necessary to change the spindle-laser switch to close to laser side; vice versa.
